TMH SERIES
LARGE CAPACITY
AIR TROLLEY HOIST

9000kg - 50000kg Capacity

  • TMH-9000/3-AT10S
  • TMH-12000/4-AT10S
  • TMH-15000/5-AT15S
  • TMH-25T-AT25S
  • TMH-30T-AT30S
  • TMH-37.5T-AT37.5-2S
  • TMH-45T-AT45-2S
  • TMH-50T-AT50-2S

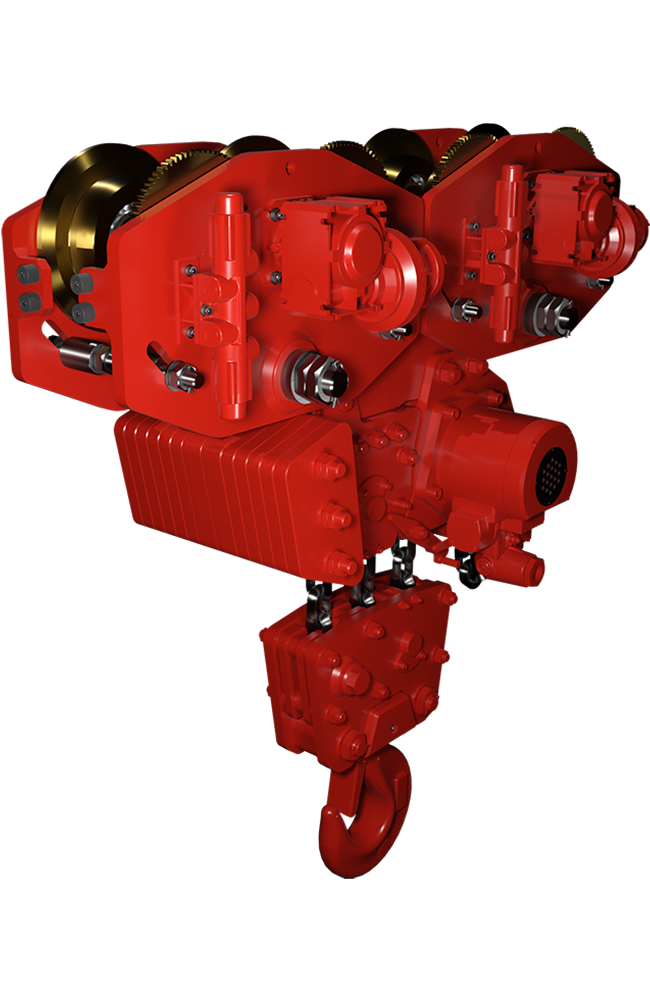

Large capacity air trolley hoist Image

Features

  • ▸ TMH series air hoist with HIGHEST LEVEL LIFTING SPEED in the market
  •  ATEX zone 2 specification
  • ▸ Robust 3 step planetary gear box
  • ▸ Failsafe automatic internal disc brake
  • ▸ Choice of pendant controls or control stations
  • ▸ Cast steel housing
  • ▸ Mechanical upper & lower switches
  • ▸ Alloy safety swivel hooks with safety catch
  • ▸ Automatic load limiter
  • ▸ Trolley to suit various flange profiles
  • ▸ Anti-tilt & anti-drop plates
  • ▸ High efficiency motor gear box
  • ▸ Heavy duty sealed wheel bearings
  • ▸ Wheel profile to suit parallel or tapered flanges

Available Options

  • ▸ Marine specification
  • ▸ Special paint systems
  • ▸ Corrosion protection
  •  ATEX zone 1 specification
  • ▸ Articulated trolley
  • ▸ Low headroom units
  • ▸ Rack & pinion drive
  • ▸ Travel limits
  • ▸ Air service units
  • ▸ Festoon systems
  • ▸ Radio control
  • ▸ Optional travel speeds

Specification

MODEL Lifting
Capacity

(kg)
No. of
Chain
Falls
Lifting
Speed
(W/L)
(m/min)
Lifting
Speed
(WO/L)
(m/min)
Air
Consumption
(Hoist)
(m3/min)
Air
Consumption
(Trolley)
(m3/min)
Travel
Speed

(m/min)
Weight
(3M HOL)&
Trolley
(kg)
Flange
Minimum

(mm)
Flange
Max

(mm)
TMH-9000/3-AT10S 9000 3 1.8 3.6 4.08 2.4 8 314 110 300
TMH-12000/4-AT10S 12000 4 1.35 2.7 4.08 2.4 8 356 110 300
TMH-15000/5-AT15S 15000 5 1.08 2.16 4.08 2.4 6.8 507 110 300
TMH-25T-AT25S 25000 2 1.4 2.7 4.08 2.4 6.8 1000 130 320
TMH-30T-AT30S 30000 2 1.0 2.7 4.08 2.4 6 1000 130 260
TMH-37.5T-AT37.5-2S 37500 3 0.9 1.8 10.8 4.8 6 1727 130 320
TMH-45T-AT45-2S 45000 3 0.9 1.8 10.8 4.8 6 1727 130 320
TMH-50T-AT50-2S 50000 4 0.7 1.3 10.8 4.8 6 2214 130 320
  • Operating air pressure is from 0.4 to 0.6MPa (from 0.5 to 0.6MPa for TMH-30T-AT30S & TMH-45T-AT45-2S)
